There are no conditional distances in those spaces: if the receptacle is installed in the laundry room/area, it requires GFCI protection. Therefore, clothes dryers are now required to be GFCI protected because they are in the laundry area.Does washer and dryer require GFCI?
GFCI Protection:

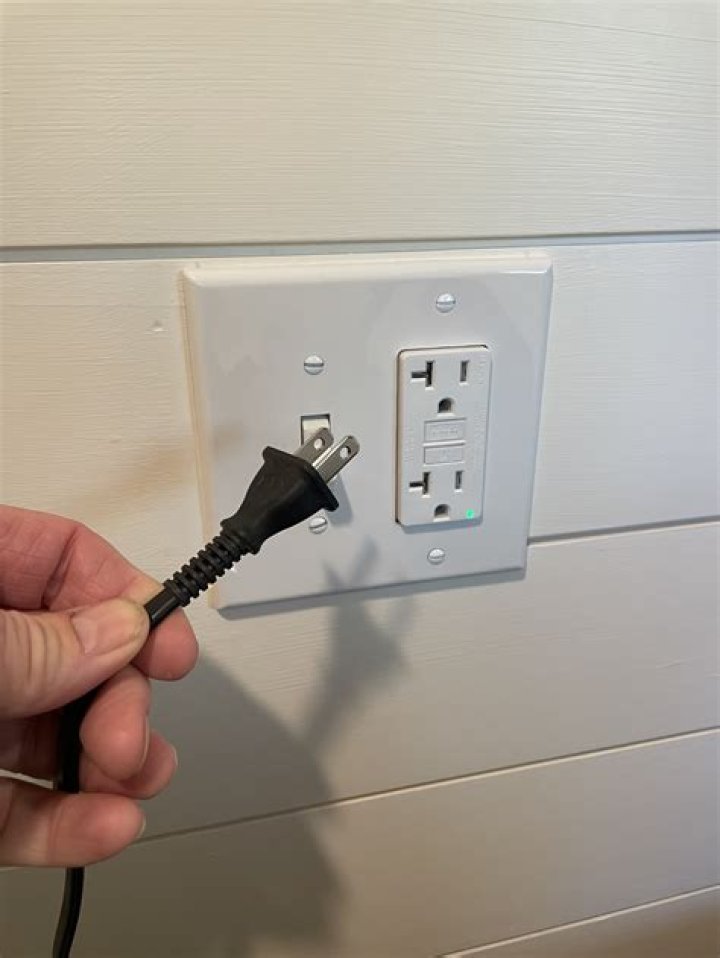

210.8(A)(10) – All 125V, 15a and 20a receptacles installed in “Laundry Areas” shall have GFCI protection. The NEC doesn't require GFCI protection for clothes washing machines specifically, but it does for “Laundry Areas.”
Do 240V dryers need GFCI protection?
Applying the revised code language in this section will also mean that most 240V residential clothes dryer receptacles will require GFCI protection.
Do 240V outlets need GFCI?
For example, GFCI protection is not required for single‐phase or three‐phase, 240‐volt, 30‐ or 50‐ampere receptacles, or similar.
Will a dryer trip a GFCI?
The dryer is tripping the 30 amp GFCI circuit breaker. When we take the ground wire off the dryer termination block at the rear of the dryer the GFCI holds fine. I read where a mosture sensor can cause a GFCI to trip as it has one side connected to ground and the leakage current keeps the timer on longer.
New 2020 Code “Why is My Dryer Tripping on a GFCI Breaker?”
Why does my dryer keep tripping my electric?
Loose Wires in Terminal Block
All the electrical connections of a dryer first go through a terminal block, which accordingly distributes power throughout the machine. Thus, if a component in the terminal block is faulty, then your dryer may inadvertently trip your breaker accidentally.
Why does my dryer keep tripping my breaker?
The heating element works to heat the air that distributes around your dryer. When the heating element is faulty, it can short out the heating housing, which then causes the dryer to trip the circuit breaker. To check the heating element, you need to: Turn the power off to the dryer.
Is there a 220v GFCI outlet?
The 220 outlet is a dedicated outlet not a duplex outlet and it doesn't serve a countertop space. It is not required to GFCI protected. The 220 outlet is a dedicated outlet not a duplex outlet and it doesn't serve a countertop space. It is not required to GFCI protected.
What needs to be GFCI protected?
The NEC mandates GFCI protection in many areas of the home: bathrooms, garages, outdoor receptacles, crawl spaces, basements, kitchens and anything within six feet of a sink or water source. While that may seem like a lot, the entirety of a home is not covered.
Which location is not required to be GFCI protected?
GFCI protection is not required for receptacles that are not readily accessible, such as a ceiling-mounted receptacle for a garage door opener. Nor are they required for a receptacle on a dedicated branch circuit located and identified for a cord-and-plug-connected appliance, such as a refrigerator or freezer.
Is it legal to hardwire a dryer?
Most dryers are listed as cord-and-plug connected appliances. Therefore, no hard-wiring allowed.
Do dryers need AFCI?
No -- the 2014 NEC only calls out AFCIs for 120V, 15 and 20A outlets -- the dryer is 240V, so it doesn't need an AFCI. 210.12 Arc-Fault Circuit-Interrupter Protection. Arc- fault circuit-interrupter protection shall be provided as required in 210.12(A) (B), and (C).
Do I need GFCI on every outlet?
The NEC requires GFCIs on all exterior and bathroom receptacles (another term for outlets). GFCIs are also required on all receptacles serving kitchen countertops. In laundry rooms and utility rooms, GFCIs should be installed on outlets within six feet of sinks, washing machines, and water heaters.
What is code for dryer plug?
The National Electrical Code currently requires 4-prong dryer outlets in all new home construction. Existing homes may still use 3-prong outlets. The switch to a 4-prong outlet was due to a flaw in the 3-prong outlet design. In a 3-prong outlet, the ground and neutral wires are contained in the same prong.
Does a washing machine outlet have to be GFCI protected?
The washing machine outlet itself does not require a GFCI outlet, however any outlet within 6 feet of the outside edge of the sink in laundry rooms require that it be GFCI protected.
What is code for outlets in laundry room?
Section 210.52(F) requires at least one receptacle outlet to be installed for the laundry in a dwelling unit.
Should refrigerators be on GFCI?
In a dwelling unit (residential), GFCI protection is only required for kitchen receptacles that serve the countertop surfaces. There's no requirement to GFCI protect receptacles that serve a refrigerator. Unless the fridge is plugged into a countertop receptacle.
What is the difference between a GFCI and a GFI?
Ground fault circuit interrupters (GFCI) and ground fault interrupters (GFI) are the exact same device under slightly different names. Though GFCI is more commonly used than GFI, the terms are interchangeable.
Should dishwasher be on GFCI?
Kitchen dishwashers installed in dwelling units require GFCI protection whether hard wired or cord and plug connected. Code Change Summary: A new subsection was added regarding dwelling unit kitchen dishwashers. Now, outlets that supply dwelling unit kitchen dishwashers must have GFCI protection.
Do they make a 30 amp GFCI outlet?
Murray MP230GFA 30 Amp 2-Pole GFCI Circuit Breaker with Self Test & Lockout Feature.
What does a 240 volt outlet look like?
A 240-volt outlet is larger with two vertical side holes, an “L”-shaped hole on top, and a bottom hole that looks like a half circle. Newer four-prong outlets add a ground wire over older three-pronged ones that helps avoid electrical shock. A 240-volt outlet is typically about 4½ inches high and 4½ inches wide.
What type of breaker do I need for a dryer?
The NEC requires that dryers have a dedicated circuit with a minimum of 30 amps. This calls for a 30-amp, double-pole breaker wired with 10 AWG wire.
Can I use a 50 amp breaker for a dryer?
You can use the 50 Amp breaker if you use a sub panel. In the second or sub panel the 50 maps can feed 1 30 amp and 1 20 amp breaker. This will power both the washer and dryer from the sub panel. Just be sure the ground in the sub panel is NOT connected to the white neutral bar.
Why does my dryer keep tripping the breaker after 10 minutes?
There are a number of reasons why your dryer tripping breaker issues might be occurring. For most dryers, it's either a problem with the motor, amps, or might be something as simple as a faulty wire or energy source. These are some of the common issues and resolutions to your problem.
