What are the 3 types of foundations?

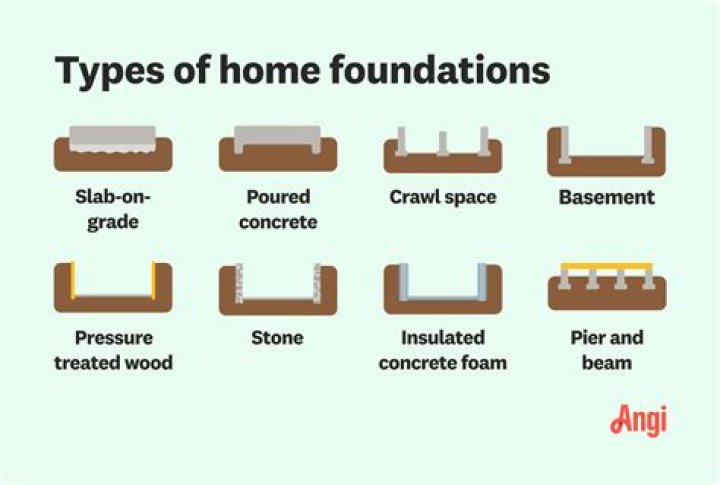

A Look at the Different Types of Home Foundations
- Concrete Slab Foundations. Let’s start with the standard concrete slab foundation, since this is the most commonly utilized foundation in modern home building.
- Basement Foundation.
- Crawl Space Foundation.
- Pier Foundation.
What is the strongest house foundation?
Foundations are mostly constructed from strong material so they can hold the house in place even during earthquakes and cyclones. Therefore, they are generally made up of concrete which is the strongest construction material.
When should I be concerned about house foundation?
Having horizontal cracks or vertical cracks that are larger than 1/16 inch is an indication that you should call in an expert to see if your home needs a foundation repair.
What is difference between footing and foundation?
Foundation is a structure which transfers the loads from the superstructure to the ground, while footing is the foundation which is in contact with the earth. A foundation can be shallow and deep, while a footing is a type of a shallow foundation. so, all footings are foundations but all foundations cannot be footings.
What is the minimum depth of foundation?
minimum depth of foundation:– minimum depth of foundation is around 5 feet for a small residential building from ground level or at least 1.50 times the width of footing. In cold climates the depth of footing is Kept at a minimum of 1.50m below surface because of possible frost action.
What are signs of foundation issues?
Here are 10 warning signs of foundation problems:
- Exterior Cracks.
- Interior Sheetrock Cracks.
- Doors Out of Square and Uneven Floors.
- Door Frame/Window Frame Separation from Brick.
- Rotten Wood – Pier & Beams.
- Bouncing floors – Rotten Wood.
- Tile Cracks.
- Expansion Joint Seperation.
What is the most expensive type of foundation?
basement
A basement is the most expensive foundation type, and unless you’re building a daylight basement—a basement built on a hillside that opens to the daylight on at least one side—this the space created by this type of foundation can feel cave-like, as it lacks natural light.
What is the purpose of footings?
Footings are an important part of foundation construction. They are typically made of concrete with rebar reinforcement that has been poured into an excavated trench. The purpose of footings is to support the foundation and prevent settling. Footings are especially important in areas with troublesome soils.
How would you fix the depth of foundation?
Depth of foundation formula:- as per Rankine’s theory & formula minimum depth of foundation is represented by formula = p/w (1-sin Φ /1+sin Φ) 2, where p=gross bearing capacity, w =density of soil, Φ =angle of response of soil. But in practice, the foundation depth is kept at 0.90m or even more.
How do I know my foundation depth?
The depth of foundation is determined by the:
- Plasticity index of soil.
- Water demand of the tree.
- Mature height of the tree.
- Distance of relevant tree to nearest part of foundations and distances elsewhere if stepping foundations.
- Allowance for climatic conditions.
